Discovering COP22

Email: j.f.talib@pgr.reading.ac.uk

Over the past two weeks 25,000 delegates have been gathering in Marrakech to discuss mitigation and adaptation for climate change. On the 4th November 2016 the Paris Agreement came into force and as a result discussions during the conference debated its implementation. The Walker Institute and the Department of Meteorology (University of Reading), with the support of the NERC SCENARIO doctoral training partnership and an UNFCCC partnership, supported two PhD students to be official UN observers at COP22, and enabled remote participation with students back at Reading University. To find out more about our work with COP22 continue reading this blog post and check out:

Today (18/11/16) the UK government are set to announce that the United Kingdom has ratified the Paris Agreement. Yesterday, Boris Johnson (UK foreign secretary) signed the Paris Agreement after no objections were raised by the House of Commons or House of Lords. The United Kingdom in accordance with the Intended Nationally Determined Contributions (INDCs) of the European Union, are set to reduce greenhouse gas emissions by 40% by 2030 relative to 1990 emission levels. Today also marks the end of the 22nd Conference of the Parties (COP) for the United Nations Framework Convention on Climate Change and here are some quick summary points that PhD students took away from observing the process in Marrakech:

1) The significance of the Paris Agreement.

“Now that we have Paris, we need to take action immediately”

Teresa Anderson, ActionAid UK.

The Paris Agreement marks a change in the intentions during the COP process. Due to the success and ratification of the Paris Agreement more discussions can be based on the adaptation and mitigation against climate change, rather than negotiating global targets on climate change prevention. The Paris Agreement states that a global response is needed to respond to the threat of climate change and that global temperature rise should be kept well below 2°C and that efforts should be pursued to limit the global temperature rise to 1.5°C. COP22 Marrakech, began by stating that this is the “COP of Action”, and therefore the focus seen during side events, negotiations, dignitary speeches and press conferences was on the need for action.

“Countries have strongly supported the [Paris] Agreement because they realize their own national interest is best secured by pursuing the common good. Now we have to translate words into effective policies and actions.”

Mr Ban Ki-Moon, Secretary General of the United Nations.

paris-agreement-signing

2) A continued effort is needed to concentrate on the individual.

As SCENARIO PhD students we were challenged to understand the process that takes place during a UNFCCC conference. To do this we interviewed many conference delegates including policymakers, research organisations, industry experts, entrepreneurs, environmental consultants and funding sources to name a few. A common theme that ran through most of our interviews is that action is needed to prioritise the individual as well as thinking in terms of national- and community-level. To ensure the successful mitigation and adaptation to climate change, strategies need to come into place that protect the rights of the individual. This poses a global challenge, stretching from protecting the livelihoods of indigenous cultures and those impacted by sea level rise on low-lying islands, to supporting workers who rely on the non-renewable energy industry. In terms of climate research we need to ensure that we make our scientific conclusions accessible on an individual-level so that our work has a greater impact.

“a key goal for us is making climate change research accessible to the user community”

Clare Kapp, WMO Press Office Communications Leader.

3) Action is needed now, however the Paris Agreement only implies action post-2020.

Throughout our attendance in plenary meetings and side events there was an emphasis that whilst the Paris Agreement is an important stepping stone to combatting climate change, action is needed before 2020 for the Paris Agreement to be reached. Currently INDCs are proposed for between 2021-2030, however for the intended global temperature targets to be achieved it was argued that action is needed now. Although, pre-2020 action raises much contention, with the most popular argument against pre-2020 action being that more time and effort is needed for negotiations to ensure that a better understanding of national efforts to climate change mitigation is determined.

“We need to take action before 2020. Working for action post-2020 is not going to be enough. We need to start acting now.”

Honduras Party Representative.

“We need more time to work on the rule book for the Paris Agreement. Discussions on this should continue.”

Switzerland Party Representative.

4) There is a difference in opinion on whether 1.5°C can be reached.

For me the most interesting question we asked conference delegates was “do you think the target of 1.5°C can be reached?” This question brought a difference of opinion including some party members arguing that the change in our non-renewable energy dependence is far too great for the target to be achieved. Meanwhile, other political representatives and NGO delegates argued that accepting the target is unachievable before even trying makes negotiations and discussions less successful. There was also anticipation for the future IPCC report titled, Special Report on Global Warming of 1.5°C above pre-industrial levels and related global greenhouse gas emission pathways.

“Of course we want to fight for 1.5°C, why fight for 2°C? It just makes sense to fight for 1.5°C”

Martina Duncan, Party Representative for Grenada.

COP22 has been a fantastic opportunity for PhD students in our department to interact and understand the process that takes place during a UNFCCC conference. Whilst the past couple of weeks have been dominated by the results of the US election and the associated uncertainties, there has been an increasing global recognition of climate change and that action should be taken. In the next few years the challenge to mitigate and adapt towards climate change will be an increasing priority, and let us hope that these annual UNFCCC conferences are key stepping stones for climate change action.

“This is a problem people are recognising, and that it is time to change”

Jonathan Pershing, US Climate Envoy

Thank you all those who have supported our work at COP22 this year. Thank you to the Walker Institute, NERC SCENARIO doctoral training partnership and UNFCCC for this brilliant opportunity. Thank you to all those who have supported us with publicity including NERC, Royal Meteorological Society, members of staff and PhD students at the University of Reading and Lucy Wallace who has ensured the appropriate communication of our project. Plus a huge thanks to all delegates and staff at COP22 who volunteered their time to talk to us.

Air Pollution – The Cleaner Side of Climate Change?

Email: c.p.webber@pgr.reading.ac.uk

Air pollution is a major global problem, with the World Health Organisation recently linking 1 in 8 global deaths to this invisible problem. I say invisible, what air pollution may seem is an almost invisible problem. My PhD looks at some of the largest air pollutants, particulate matter PM10, which is still only 1/5th the width of a human hair in diameter!

My project looks at whether winter (December – February) UK PM10 concentration ([PM10]) exceedance events will change in frequency or composition in a future climate. To answer this question, a state of the art climate model is required. This model simulates the atmosphere only and is an iteration of the Met-Office HADGEM3 model. The climate simulation models a future 2050 under the RCP8.5 emissions scenario, the highest greenhouse-gas emission scenario considered in IPCC-AR5 (Riahi et al., 2011).

In an attempt to model PM10 in the climate model (a complex feat, currently tasked to the coupled UKCA model), we have idealised the problem, making the results much easier to understand. We have emitted chemically inert tracers in the model, which represent the key sources of PM10 throughout mainland Europe and the UK. The source regions identified were: West Poland, Po Valley, BENELUX and the UK. While the modelled tracers were shown to replicate observed PM10 well, albeit with inevitable sources of lost variability, they were primarily used to identify synoptic flow regimes influencing the UK. The motivation of this work is to determine whether the flow regimes that influence the UK during UK PM10 episodes, change in a future climate.

As we are unable to accurately replicate observed UK [PM10] within the model, we need to generate a proxy for UK [PM10] episodes. We chose to identify the synoptic meteorological conditions (synoptic scale ~ 1000 km) that result in UK air pollution episodes. We find that the phenomenon of atmospheric blocking in the winter months, in the Northeast Atlantic/ European region, provide the perfect conditions for PM10 accumulation in the UK. In the Northern Hemisphere winter, Rossby Wave Breaking (RWB) is the predominant precursor to atmospheric blocking (Woollings et al., 2008). RWB is the meridional overturning of air masses in the upper troposphere, so that warm/cold air is advected towards the pole/equator. The diagnostic chosen to detect RWB on is potential temperature (θ) on the potential vorticity = 2 Potential vorticity units surface, otherwise termed the dynamical tropopause. The advantages of using this diagnostic for detecting RWB have been outlined in this study’s first publication; Webber et al., (2016). Figure 1 illustrates this mechanism and the metric used to diagnose RWB, BI, introduced by Pelly and Hoskins (2003).

thumbnail_blog_post_fig1
Fig. 1 – A schematic of Rossby Wave Breaking, breaking in a clockwise (anticyclonic) direction. The black contour represents a θ contour on the 2PVU surface, otherwise termed the dynamical tropopause. The colour shading represents θ anomalies, with red/ blue being warm/cold θ anomalies. The metric used to identify RWB is shown as the BI metric and is the mean θ in the 15 degrees latitude to the north subtracted by that to the south of the centre of overturning (black dot).

In Fig. 1 warm air is transported to the north of cold air to the south. This mechanism generates an anticyclone to the north of the centre of overturning (black circle in Fig 1) and a cyclone to the south. If the anticyclone to north becomes quasi-stationary, a blocking anticyclone is formed, which has been shown to generate conditions favourable for the accumulation of PM10.

To determine whether there exists a change in RWB frequency, due to climate change (a climate increment), the difference in RWB frequency between two simulations must be taken. The first of these is a free-running present day simulation, which provides us with the models representation of a present day atmosphere. The second is a future time-slice simulation, representative of the year 2050. Figure 2 shows the difference between the two simulations, with positive values representing an increase in RWB frequency in a future climate. The black contoured region corresponds to the region where the occurrence of RWB significantly increases UK [PM10].

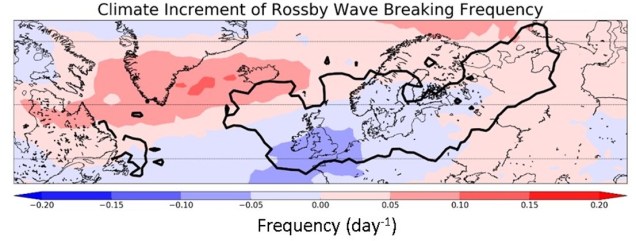

Fig 2. Climate increment in RWB frequency, with red/blue shading representing an increase/ decrease in RWB frequency in a future climate. The thick black contour represents the region where the occurrence of RWB significantly raises mean UK [PM10].
RWB frequency anomalies within the black contoured region are of most importance within this study. Predominantly the RWB frequency anomaly, within the black contour, can be described as a negative frequency anomaly. However, there also exist heterogeneous RWB frequency anomalies within the contoured region. What is shown is that there is a tendency for RWB to occur further north and eastward in a future climate. These shifts in the regions of RWB occurrence influence a shift in the resulting flow regimes that influence the UK.

Climate shifts in flow regimes were analysed, however only for the most prominent subset of RWB events. RWB can be subset into cyclonic and anti-cyclonic RWB (CRWB and ACRWB respectively) and both have quite different impacts on UK [PM10] (Webber et al., 2016).  ACRWB events are the most prominent RWB subset within the Northeast Atlantic/ European region (Weijenborg et al., 2012). Figure 1 represents ACRWB, with overturning occurring in a clockwise direction about the centre of overturning and these events were analysed for climate shifts in resultant flow regimes.

The analysis of climate flow regime shifts, provides the most interesting result of this study. We find that there exists a significant (p<0.05) increase in near European BENELUX tracer transport into the UK and a significant reduction of UK tracer accumulation, following ACRWB events. What we therefore see is that while in the future we see a reduction in the number of RWB and ACRWB events in a region most influential to UK [PM10], there also exists a robust shift in the resulting flow regime. Following ACRWB, there exists an increased tendency for the transport of European PM10 and decreased locally sourced [PM10] in the UK. Increased European transport may result in increased long-range transport of smaller and potentially more toxic (Gehring et al., 2013) PM2.5 particles from Europe.

References

Gehring, U., Gruzieva, O., Agius, R. M., Beelen, R., Custovic, A., Cyrys, J., Eeftens, M., Flexeder, C., Fuertes, E., Heinrich, J., Hoffmann, B., deJongste, J. C., Kerkhof, M., Klümper, C., Korek, M., Mölter, A., Schultz, E. S., Simpson, A.,Sugiri, D., Svartengren, M., von Berg, A., Wijga, A. H., Pershagen, G. and Brunekreef B.: Air Pollution Exposure and Lung Function in Children: The ESCAPE Project. Children’s Health Prespect, 121,
1357-1364, doi:10.1289/ehp.1306770 , 2013.

Pelly, J. L and Hoskins, B. J.: A New Perspective on Blocking. J. Atmos. Sci, 50, 743-755, doi: http://dx.doi.org/10.1175/1520- 0469(2003)060<0743:ANPOB>2.0.CO;2, 2003.

Riahi, K., Rao S., Krey, V., Cho, C., Chirkov, V., Fischer, G., Kindermann, G., Nakicenovic, N. and Rafaj, P.: RCP 8.5—A scenario of comparatively high greenhouse gas emissions. Climatic Change, 109, no. 1-2, 33-57, doi: 10.1007/s10584-011-0149-y, 2011.

Webber, C. P., Dacre, H. F., Collins, W. J., and Masato, G.: The Dynamical Impact of Rossby Wave Breaking upon UK PM10 Concentration. Atmos. Chem. and Phys. Discuss, doi; 10.5194/acp-2016-571, 2016.

Weijenborg, C., de Vries, H. and Haarsma, R. J.: On the direction of Rossby wave breaking in blocking. Climate Dynamics, 39, 2823- 2831, doi: 10.1007/s00382-012-1332-1, 2012.

Woollings, T. J., Hoskins, B. J., Blackburn, M. and Berrisford, P.: A new Rossby wave-breaking interpretation of the North Atlantic Oscillation. J. Atmos. Sci, 65, 609-626, doi: http://dx.doi.org/10.1175/2007JAS2347.1, 2008.





Robots and COP?

Email: c.m.dunning@pgr.reading.ac.uk

Robots aren’t a frequent topic of conversation amongst PhD students in the Met department, but currently everyone seems to be talking about a robot, virtual reality and COP. What’s going on?

COP stands for the Conference of the Parties, and forms the decision making body of the United Nations Framework Convention on Climate Change (UNFCCC). This is the UN body with the responsibility of “stabilizing greenhouse gas concentrations in the atmosphere at a level that would prevent dangerous anthropogenic interference with the climate system”. They meet once a year to review and assess the implementation of the UNFCCC and associated agreements and protocols. The 22nd COP will be held in Morocco next week.

So what is significant about this year’s COP? Well 2015 was a landmark year in terms of creation of UN agreements. Firstly, the Sendai Framework for Disaster Risk Reduction aims to substantially reduce disaster risk and losses in lives, livelihoods and health. Secondly, the Sustainable Development Goals, call for action to end poverty, protect the planet and encourage peace and prosperity. Thirdly, and finally the Paris Agreement, when all nations agreed to limit the global temperature rise this century to below 2 degrees Celsius and to try to limit the temperature increase to 1.5 degrees Celsius. Additionally, the agreement aims to strengthen the ability of countries to deal with the impacts of climate change.

We, as PhD students studying meteorology understand that robust evidence underpins the three major global agreements of 2015. The first priority for action under the Sendai Framework is ‘understanding disaster risk’, where science is one of the major contributors. Many of the Sustainable Development Goals, which link strongly with both the Paris Agreement and Sendai Framework , require a strong scientific basis. As early career scientists, appreciating the role of research and importance of our science is crucial.

So where does the robot come into this? Next week, Josh Talib and Caroline Dunning will be attending COP22 in Morocco on behalf of the Walker Institute. Accompanying us will be a robot avatar, which will enable remote participation in COP. Back in Reading, other PhD students will be running a Climate Action Studio, operating the robot and using virtual reality to interact with the COP and conduct interviews with participants. The hope is that, with the help of the robot avatar, we will all be able to engage with the discussions in Marrakech, and gain a greater understanding of climate governance.

20161104_1302220


If you are interested in hearing more, or intrigued about how we are using a robot to conduct interviews, we will be posting updates on this blog under the COP22 link (https://thesocialmetwork.wordpress.com/cop22/). We will also be tweeting using the hashtag #COPbot on @SocialMetwork. Thank you to NERC, SCENARIO DTP and the Walker Institute for this incredible opportunity.

nerc-logo-largescenario_logowalker_rgb

NERC Into the Blue – the Science We Live and Breathe

Email: d.l.a.flack@pgr.reading.ac.uk

One of the key aspects of science is communicating our work, not only to other scientists but also to the public. As part of the Manchester Science Festival the Natural Environment Research Council (NERC) have been holding a number of events and last week (25 – 29 Oct) Into the Blue (a science showcase) was held at the Runway Visitor Centre underneath the wings of a Concorde. Along with a fellow PhD student from Reading (Kieran Hunt, who helped out on a stand about the monsoon) I was privileged to help man a stand (on flash flooding).

The event was used to showcase all the science that NERC funds from the atmosphere through to ecology. There were 40 exhibits and the chance to take tours of Concorde and the FAAM aircraft.

Concorde (left) and FAAM aircraft (right)

Exhibits involved a variety of interactive activities from making clouds in a bottle, using Infra-red cameras, making rivers in sand boxes, meeting Boaty McBoatface and a virtual reality flash flood!

During the quieter moments at their stands the exhibitors were allowed to wander around the rest of the event (including getting tours on the planes). In doing this we were able to talk to a number of different scientists about their work and engage in all the activities.

Personal highlights for me were touring both the Concorde and the FAAM aircraft. Although the best bit was the interaction with the public and being able to give everyone (no matter the age, from kids to adults) a “wow moment”.

The stand I was helping run was called FlashFlood! This stall was run predominantly by the University of Hull on behalf of the Flooding From Intense Rainfall (FFIR) project. They had created a virtual reality flash flood that was based on a real event (Thinhope Burn, 17 July 2007) which enabled us to place the stand’s visitor into a river valley and take them through the process of flooding from intense rainfall and how floods can change the characteristics of the rivers. It also gave us the ability (because of the case we had chosen) to show people that just because its not raining heavily at your location does not mean you won’t get flooded.

img_20161029_0915221

Having virtual reality was a massive draw for people to come to our stand so we were always fairly busy, but the feedback we had was very positive with the most frequent comments being,

  • “It felt like I was really there”
  • “It really helps me to visualise the science”
  • “Wow, this is really amazing”.

Comments like this really make events such as Into the Blue worth while for us as scientists as we then realise we are getting our messages through to people, and it shows the usefulness of scientific research to the public.

Events like this can be exhausting, but they are definitely worth the effort as you get to see the delight of the public as they learn about different science and have fun at the same time.

A big thank you must be said to NERC and Manchester Runway Visitor Centre for organizing and hosting the event and to all the exhibitors who did a great job in communicating science to the public.

EnvironmentYes

Email: luke.storer@pgr.reading.ac.uk

What happens when you ask a bunch of PhD meteorologists (and a space physicist) to come up with an innovative business idea and pitch it to leading experts in business development?

If we’re honest, a bunch of crazy ideas that happened to land us with something believable and attainable. Some of our brainstorming ideas included:

  • Cow Power: Using Pizoelectric sheets to generate electricity from the movement of cows in turnstables.
  • Pick Me Cup: A brand new portable cup created from biodegradable products as part of a reusable scheme.
  • PVC Insulate: Encouraging PVC recycling (i.e. plastics found in food wrap) and use the products for loft insulation.
  • Satellite Design Detection: Using satellite data and weather forecast models to predict the movement of crop diseases.

As scientists we tried to develop ideas that we thought would be plausible, effective and reduce the environmental impact of humans. Therefore the idea we settled on before the start of the workshop was Pick Me Cup. We aimed to use biodegradable materials that are waste products from the agriculture industry such as straw to make a durable and reusable coffee cup. We developed a strategy that would allow consumers to use the cup, deposit it in a recycle type bin, and get a new clean one next time they buy a drink. The scheme’s aim was to reduce waste in an easy manner for customers.

When we arrived at the workshop it quickly became evident that our idea wasn’t interesting enough, and our idea had to be plausible… but importantly not real. So we developed our idea adding in what we called ‘fake science’, which we found difficult as scientists. After talks outlining important things to remember when creating a business plan, we were set loose to work on our idea, with time spent with mentors helping us with the business strategy and intellectual property.

We wrestled with our idea trying to think of something interesting that we could incorporate, then patent and sell the license for. This finally led us to ‘ThermoPaper’. The idea was adding a chemical to the paper, increasing its thermal properties without compromising its recyclability, weight or increasing the costs significantly. This way fewer paper cups would be used as people don’t have to ‘double cup’. It also removes the need for a protective sleeve.

slide1

The workshop was an interesting insight into the world of business and entrepreneurship, informing us of patenting, licensing and the most important part of any small business… the exit strategy. By combining all these elements we forged a business plan that we thought was ambitious, asking for £200 000 investment, and an estimated sale price of £14 million in 5 years. So we gave our Dragons Den style pitch and they loved our idea, but apparently we were not ambitious enough! We aimed to start small and build our way up, developing new uses for ThermoPaper, but they said we should have just gone straight for the top. As a result we didn’t win, but it was an interesting few days.

A big thanks to NERC, Syngenta and all the other organisations that made the workshop possible, and also to the speakers and mentors that helped shape our idea and business plan throughout!

NAWDEX Campaign – Experiencing the Jet Stream

Email:  j.maddison@pgr.reading.ac.uk

NAWDEX (North Atlantic Wave and Downstream impact Experiment) was an International field campaign led by Ludwig-Maximilians-Universität (LMU) Munich and the Deutsches Zentrum für Luft- und Raumfahrt (DLR) Oberpfaffenhofen in cooperation with the Eidgenössische Technische Hochschule (ETH) Zurich and the Office of Naval Research in the USA, with many other international collaborators. Multiple aircraft were deployed from Iceland (the HALO aircraft and the DLR and Safire Falcons) and the UK (the FAAM aircraft) to take meteorological measurments with the aim of providing knowledge of mid-latitude dynamics and predictability. There was involvement from across the UK, including the University of Reading, the University of Manchester, and the Met Office as well as from the FAAM.

The NAWDEX operations centre was based in Keflavik, Iceland (number 27 in Figure 1), which I visited for a week to join the campaign as one of the representatives from the University of Reading, UK. I was tasked with being the ground-based observation coordinator.

radiosonde_locs

Figure 1: Radiosonde launch locations for the campaign.

A Europe-wide network of radiosonde launch locations (Figure 1) had been readied for additional launches during the NAWDEX period. Our role was to choose sites to launch sondes from that would complement measurements taken by the aircraft and/or support one of the NAWDEX objectives. Of particular interest was downstream high impact weather events over Europe. It was great to be given real responsibility and be able to actually contribute to the NAWDEX project.

Below is a typical daily schedule I would have in Iceland:

Daily schedule:

UK call: 8:30am Icelandic. Conference call between UK parties discussing plans for the coming days and any updates from Iceland or the UK.

General meeting: 12pm Icelandic. Go over brief weather summary, instrument status reports, flight plans for the coming days and reports of previous flights.

Weather meeting: 4pm Icelandic. Detailed look at the weather situation for the short and medium-ranges, highlighting key features that would be of interest to fly into, e.g. extratropical transitions of tropical cyclones (which we were fortunate to observe more than once). Radiosonde launch updates.

In between: assessing forecasts and flight plans for the coming days and meeting with scientists for their input to decide where we want to launch radiosondes from. Along with preparing slides to present to the group proposed launch locations and emailing various meteorological services to request the launches (the most time consuming).

My time in Iceland was a great learning experience. Working with some of the pre-eminent scientists in the fields of dynamics and predictability (and spending most of the day discussing the weather!) really helped improve my understanding of the development of mid-latitude weather systems and better understand their predictability.

img_5638

Figure 2: On-board the FAAM aircraft.

After returning from Iceland I got the opportunity to fly on the FAAM aircraft (Figure 2) whilst it was on a mission for another project. The flight aim was to perform a radiometer inter-comparison by taking coordinated measurements of deep-frontal cloud to the north of Scotland with the HALO and Safire aircraft. The flight was remarkably turbulent free (I‘d been hoping for more of a roller coaster ride), although we did perform a profile right through the cloud to an altitude of less than 50 ft, which was pretty fun! Whilst on the aircraft we were also able to plot measurements being taken in real time on an on-board computer.

thumbnail_img_5644

Figure 3: Flying at an altitude of 35 ft.

NAWDEX was a great opportunity to get first-hand experience of a major international field campaign (and see some of Iceland).

img_5508

The impact of Climate Variability on the GB power system.

Email: h.bloomfield@pgr.reading.ac.uk

Bloomfield et al., 2016. Quantifying the increasing sensitivity of power systems to climate variability. View published paper.

Within the power system of Great Britain (GB), there is a rapidly increasing amount of generation from renewables, such as wind and solar power which are weather-dependent. An increased proportion of weather-dependent generation will require increased understanding of the impact of climate variability on the power system.

blog1

Figure 1: Predicted installed capacity from the National Grid Gone Green Scenario. Source: National Grid Future Energy Scenarios (2015).

Current research on the impact of climate variability on the GB power system is ongoing by climate scientists and power system modellers. The focus of the climate research is on the weather-driven components of the power system, such as the impact of climate variability on wind power generation. These studies tend to include limited knowledge of the whole system impacts of climate variability. The research by power system modellers focuses on the accurate representation of the GB power system. A limited amount of weather data may be used in this type of study (usually 1-10 years) due to the complexity of the power system models.

The aim of this project is to bridge the gap between these two groups of research, by understanding the impact of climate variability on the whole GB power system.In this project, multi-decadal records from the MERRA reanalysis* are combined with a simple representation of the GB power system, of which the weather-dependent components are electricity demand and wind power production. Multiple scenarios are analysed for GB power systems, including 0GW, 15GW, 30GW, and 45GW of installed wind power capacity in the system.

This study characterises the impact of inter-annual climate variability on multiple aspects of the GB power system (including coal, gas and nuclear generation) using a load duration curve framework. A load duration curve can be thought of as a cumulative frequency distribution of power system load. Load can be either power system demand (i.e. the NO-WIND scenario) or demand minus wind power (ie. the LOW, MED and HIGH scenarios).

The introduction of additional wind-power capacity greatly increases the year-year variability in operating opportunity for conventional generators, this is particularly evident for baseload plant (i.e. nuclear power plants). The impact of inter-annual climate variations across the power system due to present-day level of wind-farm installation has approximately doubled the exposure of the GB power sector to inter-annual climate variability. This is shown in Figure 2 as the spread between the red and blue curves (from the LOW scenario) is double that of the black curves (the NO-WIND scenario).

blog2

Figure 2: Load duration curves for the NO-WIND and LOW scenario in black and grey respectively. The two most extreme years from the LOW scenario are 1990 and 2010, plotted in red and blue respectively. Vertical dashed lines show the percentage of time that baseload-plant (91%) and peaking plant (7%) are required to operate

This work has shown that as the amount of installed wind power capacity on the power system is increased, the total amount of energy required from other generators (coal, gas, nuclear) is reduced. Wind therefore contributes to decarbonising the power system, however the reduction is particularly pronounced for plants which are operating as baseload rather than peaking plant (i.e. oil fired generation) where an increase in required production is seen.

This study adds to the literature which suggests that the power system modelling community should begin to take a more robust approach to its treatment of weather and climate data by incorporating a wider range of climate variability.

For more information contact the author for a copy of the paper with details of this work: Quantifying the increasing sensitivity of power system to climate variability (submitted to ERL).

* A reanalysis data set is a scientific method for developing a record of how weather and climate are changing over time. In it, observations are combined with a numerical model to generate a synthesised estimate of the state of the climate system.

NERC Course on Polar Fieldwork Skills

Email: r.frew@pgr.reading.ac.uk

The aims of the NERC funded BAS run course, “A skills framework for delivering safe and effective fieldwork in the polar regions”, were to learn how to safely and effectively plan and carry out fieldwork at the poles. And in doing so, to give 16 early career polar scientists across a range of disciplines the opportunity to go to the Arctic and learn practical fieldwork skills that we don’t pick up from our day to day office work.

The first part took place at Madingley Hall in Cambridge where we were briefed as an entire cohort on planning, logistics, instrumentation, risk assessment, GPS mapping, health and safety, and were exceedingly well fed as part of the process….

The sunny early morning views that greeted us into Ny Ålesund.

Next we set off to put what we had learnt into practice in Ny Ålesund, on the Island of Spitzbergen (translates as ‘pointy mountains’) in Svalbard. Ny Ålesund is a small international village predominantly inhabited by scientists, with a peak population in summer of around 150, and a hardy winter population of 35 toughing out the minimal daylight hours and chilling temperatures, which reach minimums of around -20°C! Our journey began with three flights, and a stopover in Longyearbyen, also known as Santa Claus town, although it looks a lot more industrial than the name implies. We then had a 3.30am start which was aided by the 24 hour daylight to get the boat to Ny Ålesund. After 4 hours of queasiness we arrived at the NERC UK Arctic research station in Ny Ålesund.

groupphoto
The group all kitted out in front of the NERC UK Arctic Research Station. Photos courtesy of Simon Morley.

The first task we had to do after arrival was the rifle training course. This felt like a dangerous activity to be doing at 2pm in the afternoon after a 3.30am start. However it is safe to say we were all sufficiently awake after the first gun shot… We never left the NERC Arctic base without a massive rucksack full of layers, food, water, flask etc and most importantly a rifle and flare gun in case of running into a polar bears. As we are essentially trespassing on the bears’ territory, it is up to us to avoid disturbing them and to use rifles for self-defence as a last resort.

Terrestrial wildlife around Ny Ålesund. The greatest wildlife threat we faced was the cheeky Arctic fox stealing our sandwiches!

In Ny Ålesund you are very far removed from civilisation, even via digital means as there is no wifi (due to a large experiment detecting quasars) or phone signal. Therefore life in Ny Ålesund feels timeless, as outside events that rampage on social media feel far removed and irrelevant. However signatures of global warming are evident, with the extent of glaciers noticeably retreating each year, and sea ice becoming a rarer and rarer occurrence in the fjord within the living memory of residents of Ny Ålesund.

From left to right: View of Ny Ålesund, the closest we came to a polar bear in the doorway of the mess building, old hut from the mining industry.

The past mining infrastructure is evident everywhere, and classified as ‘heritage’, meaning that despite thinking of them as eyesores, in the otherwise immaculate views the run down infrastructure is actually protected as part of Ny Ålesund’s history. The NERC UK Arctic base was very cosy, we definitely weren’t roughing it like all those early polar explorers! The base is run by station manager Nick Cox, who was full of stories about everything and anything. Most evenings ended with everyone staying at the base gathering together for storytime with Nick in the living room of the UK Arctic base. Everyone in Ny Ålesund went to the mess building (best view I’ve ever had whilst eating breakfast!) in the centre of Ny Ålesund for meals, and on Saturdays everyone makes more of an effort to change out of work clothes and enjoy good food and wine together before heading to the small pub which opens on Saturday nights for people to gather to drink, chatter and dance.

Every time we left the UK station we had to take an enormous rucksack filled with food (packed lunch and lots of snacks, Mars bars disappeared like gold dust), waterproofs, spare layers, emergency blanket, first aid kit, temporary shelters, spare batteries for any equipment needed, flare gun, rifle, bullets, a satellite phone (one between the group), radio (at least one for each separate group). Keeping in contact via radio is very important, even if our group was going to be just 15 mins late we had to radio in and let the people at the station now so they can amend the signing out book. There was also a radio line for all of the stations in Ny Ålesund, so everybody would know if somebody was in trouble or extra help was needed. All the extra layers were essential. In just the five days we were there, we saw sun, rain, snow, sometimes all in one day! Preparing for all eventualities and all of the `what ifs’ is essential for polar fieldwork.

We had two main projects that required fieldwork planning and execution. The first was a two day marine biology project (led by Simon Morley from BAS) which was undertaken in two boats followed up by lab work. We took sediment grabs, plankton nets, CTD profiles (measurements of salinity, temperature and density), put down traps overnight. The aim was to investigate the difference between near rivers and near glaciers, and build up a picture of the food web there. Understanding the small marine creatures at the base of the food web and their temperature tolerance has important implications for larger marine and terrestrial creatures higher up the chain.

Left to right, getting our hands dirty sieving the sediment samples on the boat, putting on the immersion suits before getting onto the smaller boat in case of falling in! Photos courtesy of Simon Morley and Ed King.

The second two day task (led by Ed king from BAS) was to investigate the retreat of a glacier about 4-5km from Ny Ålesund called Midtre Lovénbreen. We carried out was to do a ground penetrating radar survey along and across the nearest glacier to Ny Ålesund to measure the ice thickness. Also, we mapped out the snout of the glacier and took photos to compare the glacier to previous years. A 15-20m retreat of the snout of the glacier relative to last year was measured!

Clockwise from left: Setting up the geophysics kit for a transect on the glacier, Midtre Lovénbreen in 1999, Midtre Lovénbreen September 2016. Glacier photos courtesy of Ed King.

The five or so days we had in Ny Ålesund flew by and before we knew it, it was time for us all to take the (very choppy) boat journey back to Longyearbyen before heading back to the UK. I really, really enjoyed the course, and I would highly recommend to any PhDs or Postdocs who study the poles to consider applying for the course in 2017!

Thanks to everyone at BAS involved in organising the course, in particular Alistair Crane, Blair Fyffe, Simon Morley, Ed King, Nick cox, and of course Ali Teague for organising all of the logistics and ensuring we all got there and back as smoothly as possible!
